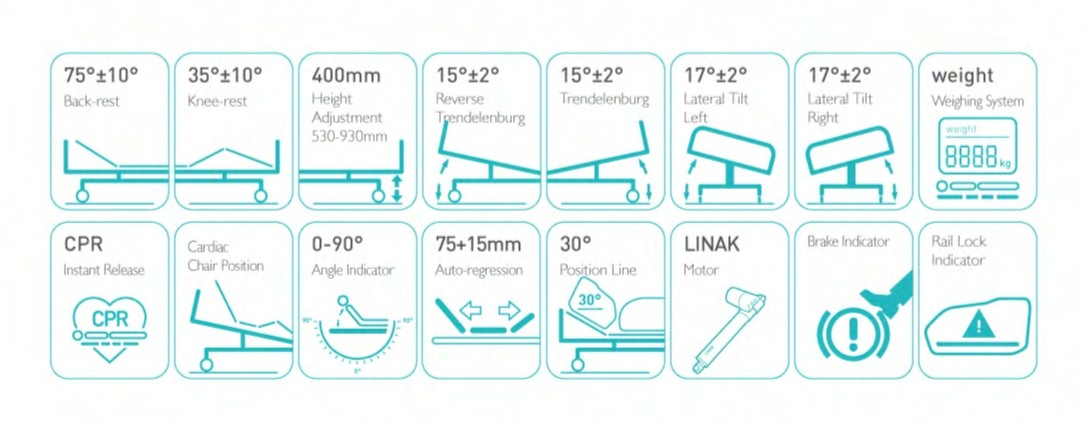

Key Functional Features:
Back-rest adjustment: 75°±10°
Knee-rest adjustment: 35°±10°
Bed height adjustment range: 530mm – 930mm
Reverse Trendelenburg: 15°±2°
Trendelenburg: 15°±2°
Lateral tilt (Left / Right): 17°±2°
Weighing system: Integrated precision weight monitoring
CPR function: Instant release (manual and electric CPR options)
Cardiac chair position: Enabled
Angle indicator: 0–90°
Auto-regression: 75±15mm
Position line: 30°
Motor system: High-performance LINAK motor
Safety indicators: Brake indicator and rail lock indicator
Technical Parameters:
External length: 2172mm
External width: 1070mm
Minimum bed height: 530mm
Maximum bed height: 930mm
Mattress platform size: 1925×900mm
Safe working load: 250kg
Technical Configuration:
LINAK motor: 2pcs
Telescopic column motor: 3pcs
5-inch Double Side Secure castors with central locking: 4pcs
Integrated LCD control side rail: 1set
Bed ends with safety lock: 1set
X-ray transparent resin platform: 1set
Patient angle indicator: 1pc
85mm wall bumper wheel: 4pcs
Telescope socket: 1pc
IV pole: 1pc
IV pole prevision: 8pcs
Drainage hook: 4pcs
Central locking pedal: 2pcs
Mattress retainer: 6pcs
Nurse control panel: 1pc
Emergency stop button: 1set
Night light: 1set
Manual CPR: 1pc
Electric CPR: 1set
Weighing system: 1set
