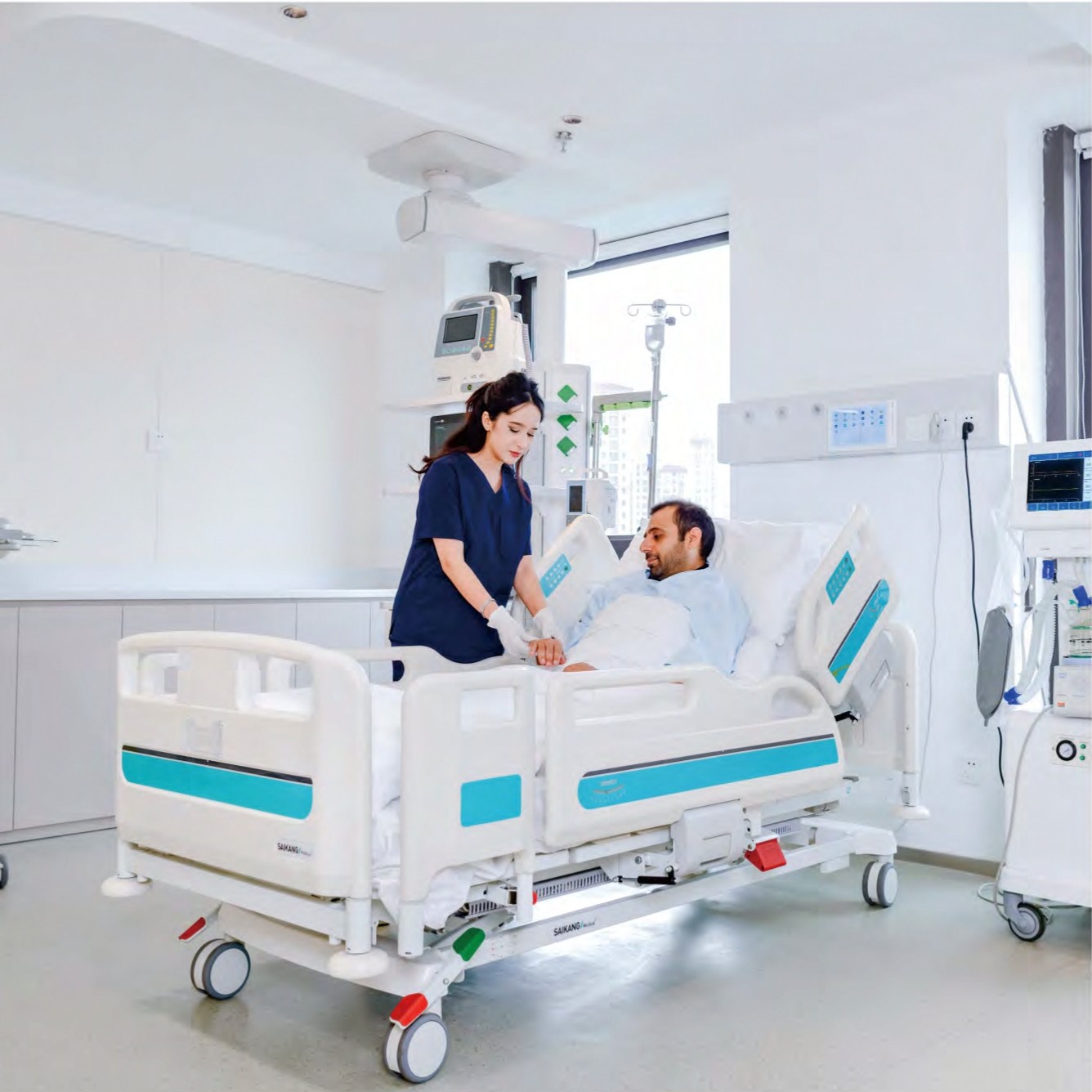

Engers Y8y Electric ICU Bed

Model SKD-CV

Product Overview:
The Engers Y8y Electric ICU Bed is a high-performance intensive care solution designed to provide optimal safety, comfort, and efficiency for both patients and clinical teams. Built for modern critical treatment and recovery environments, it integrates advanced motorized functions, precision positioning controls, emergency CPR features, and intuitive caregiver interfaces.
With enhanced mobility, auto-regression, Trendelenburg adjustment, and cardiac chair mode, the Y8y model supports improved respiratory and circulation management while reducing pressure on the patient’s body and enhancing caregiver workflow.

Suitable Applications:
Intensive Care Units
Critical care & trauma centers
Long-term recovery wards
Private & government hospitals

ENQUIRY!
Categories: , , Vendor: websplend
Description

Key Functional Features:
Back-rest adjustment: 75°±10°
Knee-rest adjustment: 33°±10°
Height adjustment range: 390mm – 870mm
Reverse Trendelenburg: 17°±2°
Trendelenburg: 17°±2°
Cardiac chair position: Enabled
Auto-regression: 70–40mm
Position line: 30°
Bed extension: 200mm
Weighing system: Integrated digital weighing function
CPR function: Instant release
Angle indicator: 0–90°
Built-in LED torch: Available
Motor system: LINAK motor

Technical Parameters:
External length: 2150mm
External width: 1060mm
Minimum bed height: 390mm
Maximum bed height: 870mm
Mattress platform size: 1925 × 880mm
Safe working load: 250kg

Technical Configuration:
LINAK motor: 4pcs
5-inch Double-Side castors with central locking: 4pcs
PP Oasis Side Rail Extra Height: 1set
PP bed ends with safe lock: 1set
PP bed platform, removable & washable: 1set
X-ray transparent phenolic resin bed platform: 1set
Patient socket inside PP guardrail for phone or glasses: 1pc
Patient angle indicator for back-rest & Trendelenburg position: 4pcs
Ø85mm wall bumper wheel: 4pcs
IV pole (4 hooks): 1set
IV pole prevision: 4pcs
Drainage hook: 2pcs
Three-stage central locking pedal: 1set
ABS mattress retainer: 2pcs
Manual CPR: 1pc
Electric CPR: 1set
Nurse controller: 1pc
Hand controller: 1pc
Weighing system: 1set
Night light: 1set
Bed extension 200mm: 1set
Trapeze socket: 1set
Back-up battery: 1set
Fit and soft siderails: 1set

Optional:
Monkey pole
Oxygen cylinder holder
Basket

Advantages:
Double auto-regression
Super-low bed position 390mm
PP side rail platform, removable & washable
Integrated PP head & foot board, one-step release with safe lock
Patient-friendly soft guardrail with two-step unlocking system
Back-rest S-curve ergonomic position reduces infection risk
Built-in LED torch
